Hersteller: BEL Stewart

Bel Stewart Connector – Ethernet Connectivity

The Stewart Connector portfolio of products include one of the broadest ranges of Ethernet connectivity. The interconnect products includes passive jacks, plugs and cable assemblies that provide connectivity in networking equipment. Modular plugs and cable assemblies are used within the structured cabling system, known as premise wiring.

All connector products are designed to meet current performance standards including Category 6 regulations for Gigabit Ethernet and 10Gigabit Ethernet applications. The MagJack® products include a comprehensive line of single and multi-port RJ-45 connectors with integrated magnetic for 10/100/1000Base-T applications.

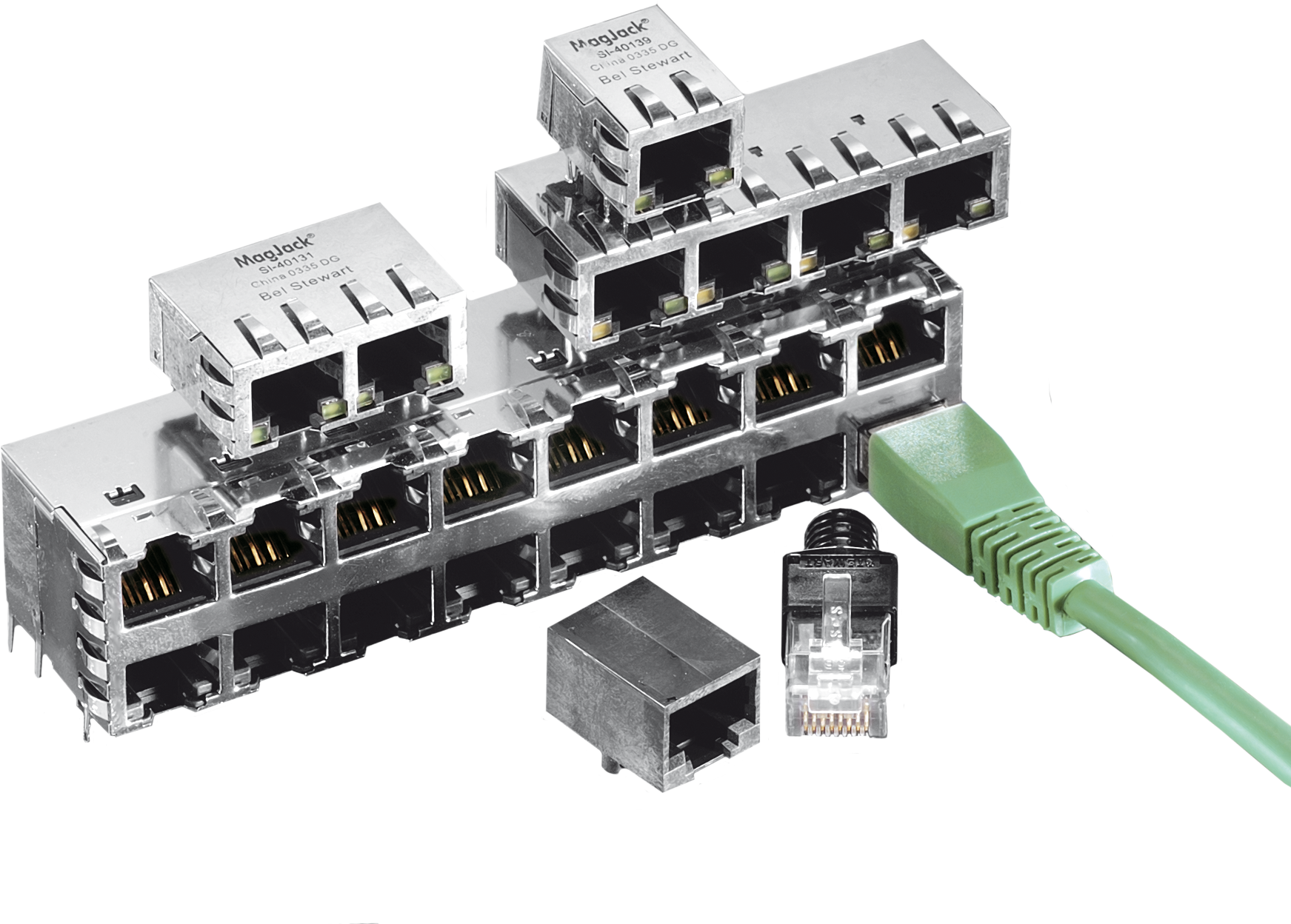

MagJack® Integrated Connector Modules

MagJack Integrated Connector Modules, or ICMs, are the flagship product-line at Bel Fuse. Bel has been manufacturing ICMs for 15 years and is the premier supplier in the world for high volume and high reliability MagJack connectors for the Networking and Telecommunications markets. The product portfolio is second to none, they have tooled more options and connector versions than any other supplier. They specialize in broad usage designs, capable of working with any Ethernet based PHY on the market and our EMI and RL expertise provide the customers with an advantage of their own in the market. Click on the links below for more detailed information about specific MagJack products.

Bel Stewart MagJack Advantage

At Bel, they use a manufacturing process where wire-wrap all magnetic wire to a metal post—as opposed to soldering wire to a pad on the PCB. This wire-wrapping process is automatable and allows for a significantly higher yield and field reliability than the alternatives. This allows them designs to be more robust and hold up to more sever operating conditions — which many customers agree allows them worry-free designs from the connector I/O stand-point.

Bel Stewart also owns several key patents pertaining to critical areas of the ICM performance. Bel use their depth of engineering expertise to help customers meet strict Emissions and Signal Transmission requirements that one can not just get from an off-the-shelf ICM.

MagJack® Integrated Connector Modules by Bel Steward

The MagJack® Integrated Connector Module (ICM) product-line is Bel Fuse’s premier family of products for Ethernet networking applications. Ranging from 10/100BaseT to 10GBaseT to PoE(plus), the ICM product line covers every Ethernet application in the market today. The ICM product-line includes single port, SMT, vertical mount, USB-combo, single-row harmonic style and double-stack, high density RJ45 connectors, many capable of transmitting up to 60 watts of power for PoE applications. All the connectors are UL listed and manufactured by Bel Fuse.

The Bel Fuse MagJack ICMs are the one of the most reliable, consistently performing parts on the market today. Bel Fuse ICMs boast the most comprehensive offering of circuits and footprints for any application. Every connector is 100% tested in production and uses our patented wire-wrapping technology to ensure high reliability even in the most environmentally challenging conditions.
